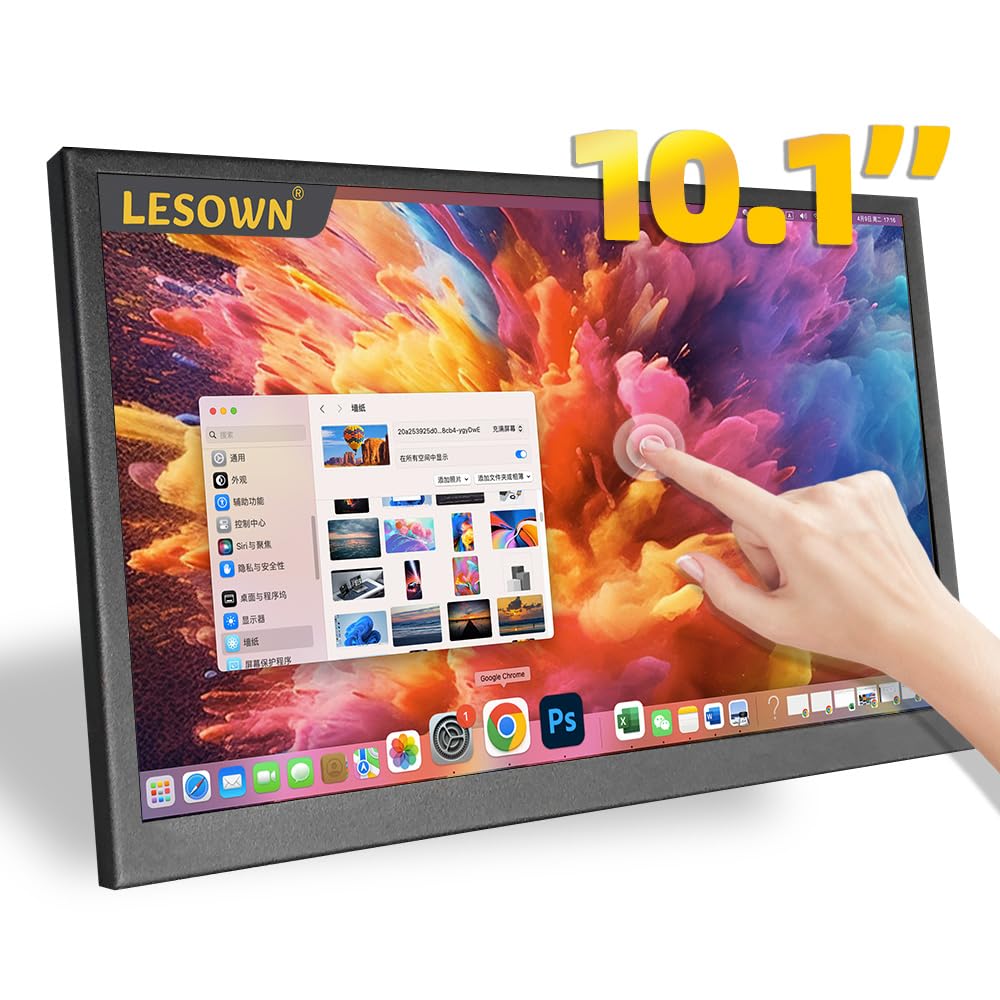

LESOWN 10 inch Monitor Touchscreen Small HDMI Portable Display 1024x600 IPS Computer 10.1 inch Secondary Screen mini Monitors for Windows Mac Laptop PC

Brand: LESOWN

Color: silver

Features:

• Wide viewing angle IPS panel with excellent color. This 10.1 portable monitor boasts 1024x600 HD resolution on a crisp mini lcd screen, delivering delicate picture quality and bringing you the best visual experience.

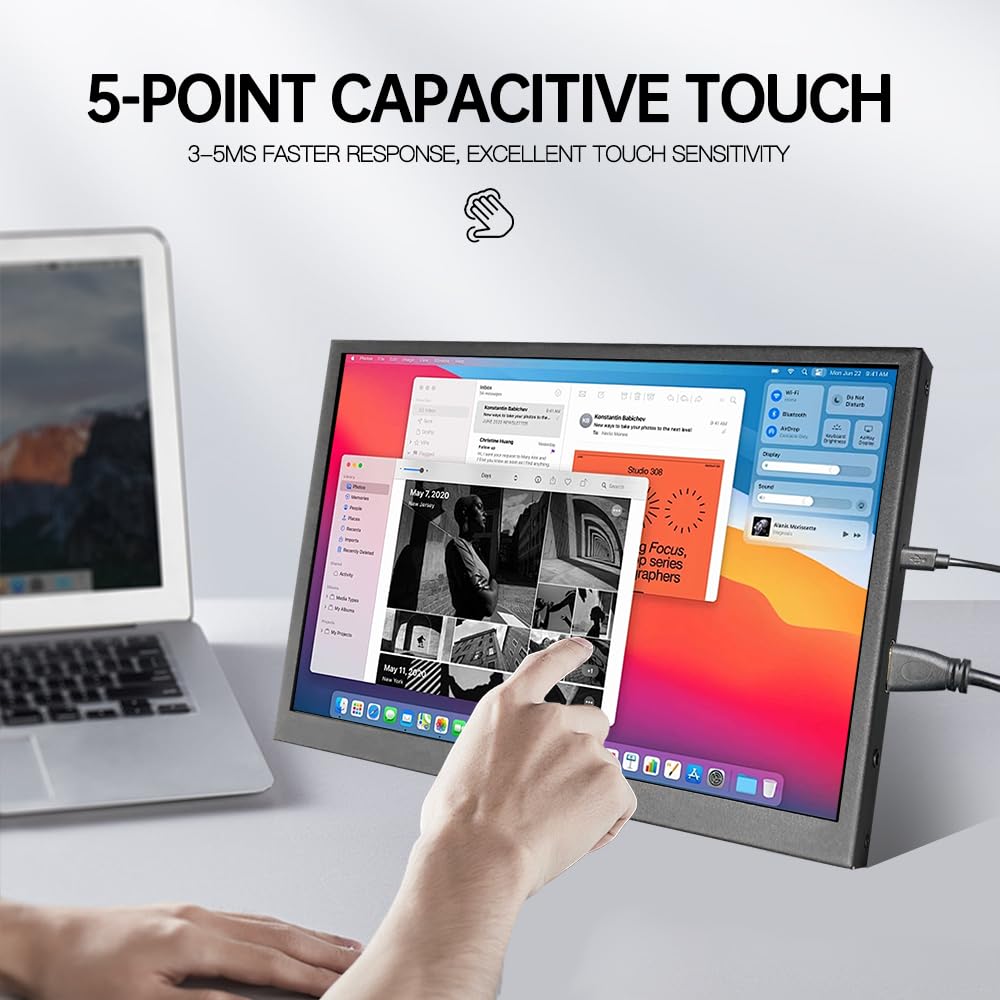

• Responsive touch function, maximum support capacitive 5-point touch. As a touchscreen portable monitor, it offers excellent touch sensitivity, letting you slide, scroll, select, zoom in, zoom out and move the cursor with just about 3–5ms faster response time.

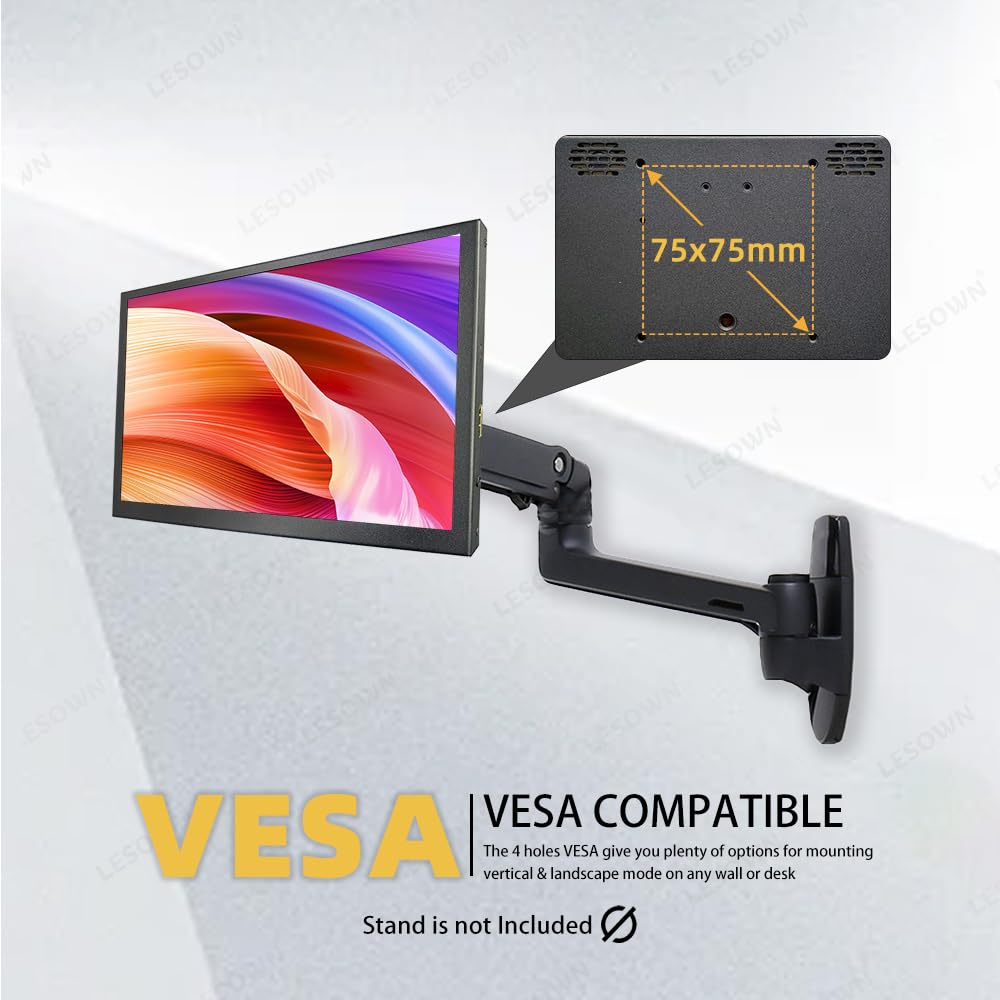

• Metal appearance, light-weight and thin. This compact small display and practical mini Secondary Monitor has an outline dimension of 241×145×14.6/16.6(mm), and a display area of 222.72(W)×125.28(H)mm. Comes ready to use with accessory cables.

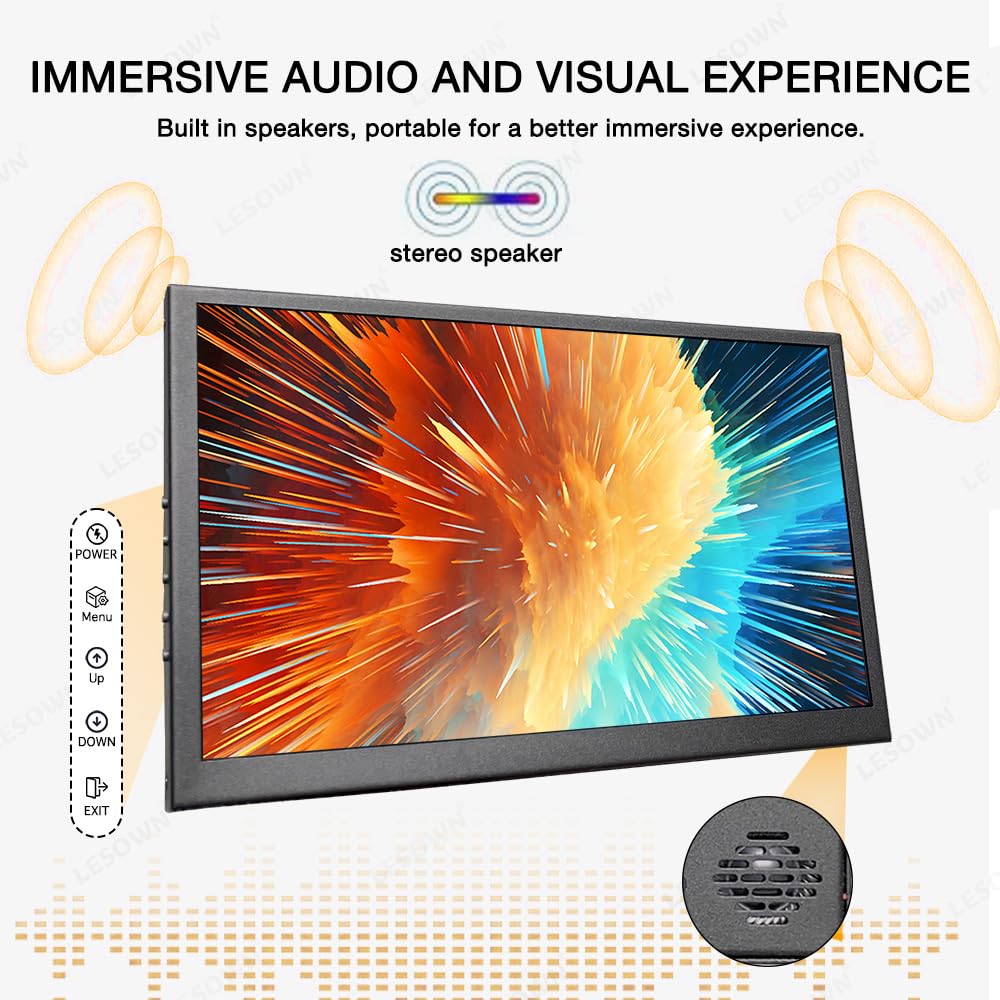

• Built-in dual speakers and audio jack, you don't need an external speaker when working on a Pi project with this raspberry pi monitor.

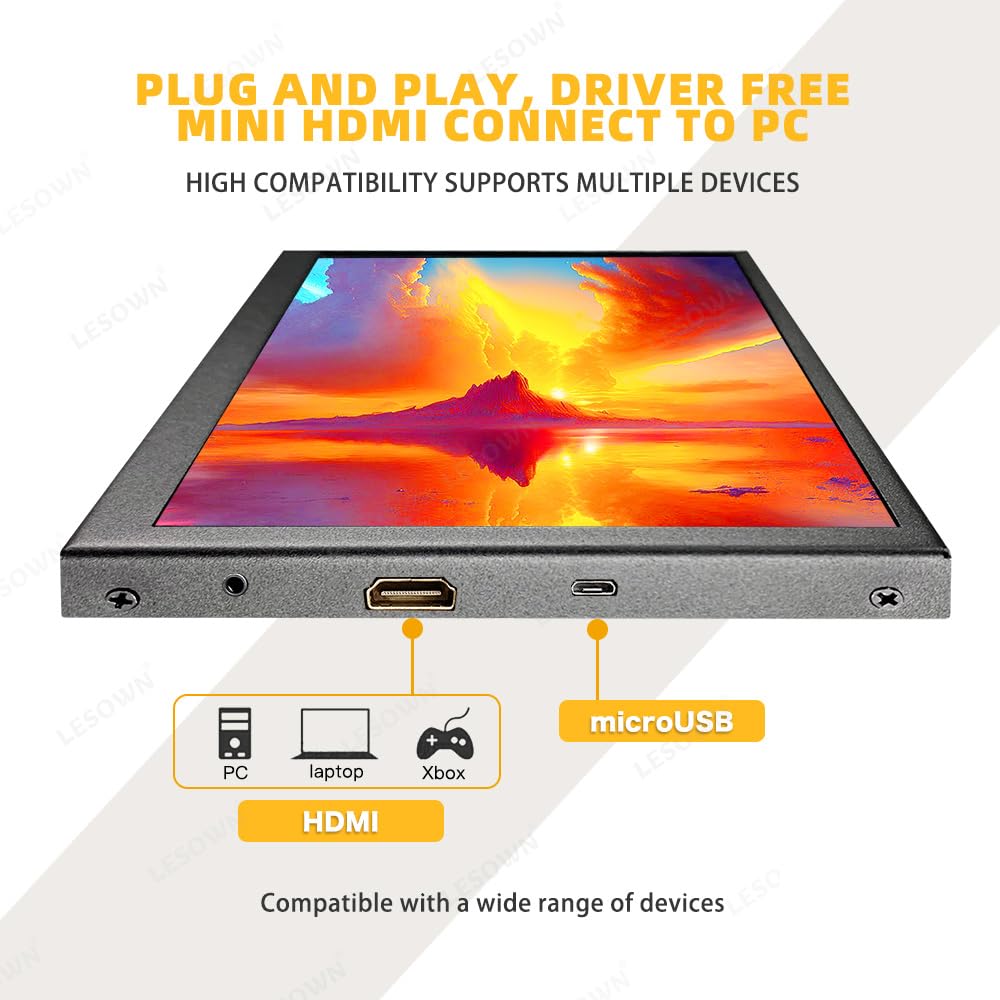

• Plug and play & widely compatible. Ideal as a portable monitor for laptop, this dedicated raspberry pi display works with Raspberry Pi 4/3/2/Zero/B/B+/A, Banana Pi; it’s also compatible with Ubuntu, Retro Pi, Jetson, Debian, Kali, Windows 7/8/10, PC, Mac, Laptop, TV and Switch/XBOX/PS4. Windows & Mac OS systems support plug and play, no program or software support is required.

model number: LP101C-T

Part Number: LP101C-T

Details: Specifications:
Screen Size：10.1 inch
Screen Type：LCD
Panel Type：IPS, Normally Black
Resolution：1024×600
Viewing Angle：170°Full View Angle

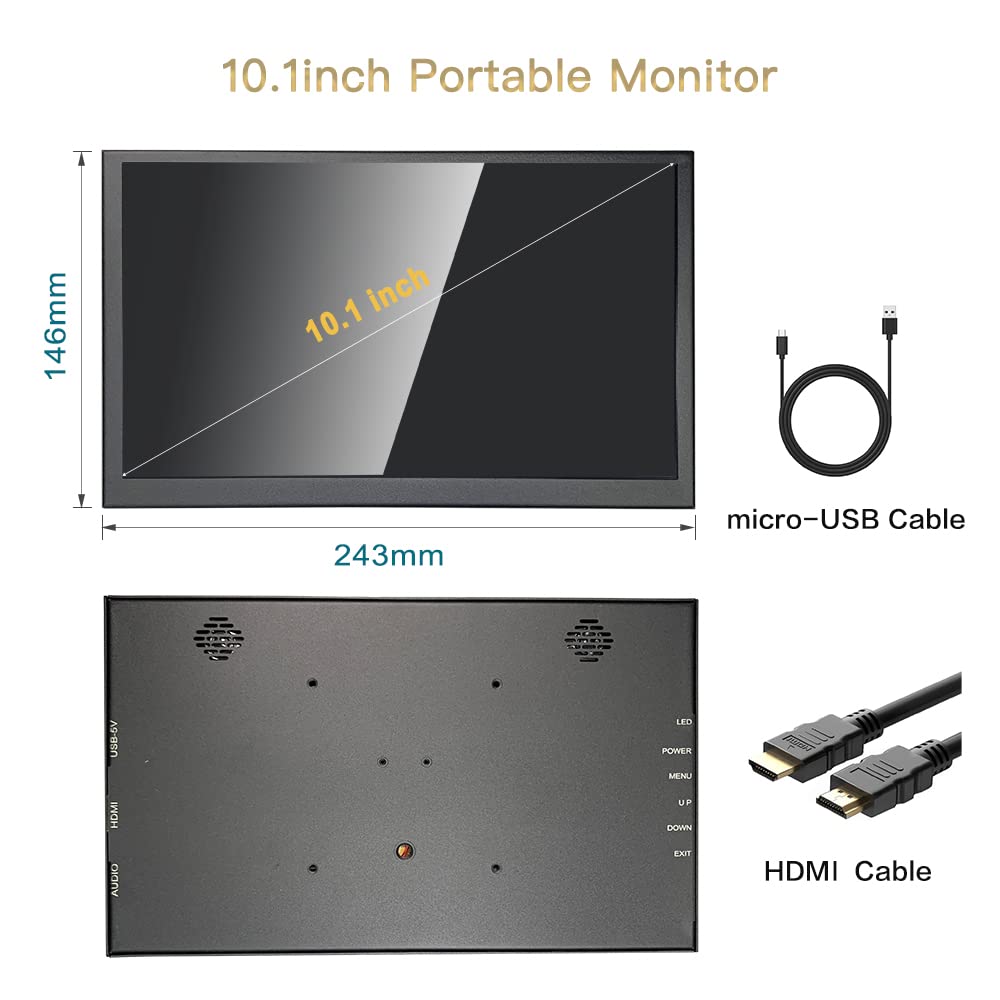

Outline Dimension：241×145×16.6(mm)
Display Area：222.72(W)×125.28(H)mm
Color Gamut：50% NTSC
Display Colors：16.7M(8-bit)
Refresh Rate：60Hz
Response Time：25 (Typ.)(Tr+Tf)ms
Screen Ratio：16:9
Contrast Ratio：800:1 Surface Luminance：300cd/m2
HDR Function：Not Support
Touch Function：Yes
Touchscreen Type：Capacitive
Touch Points：5 Point Touch
Power Supply：microUSB Por
t Input Voltage：5V/2A DC

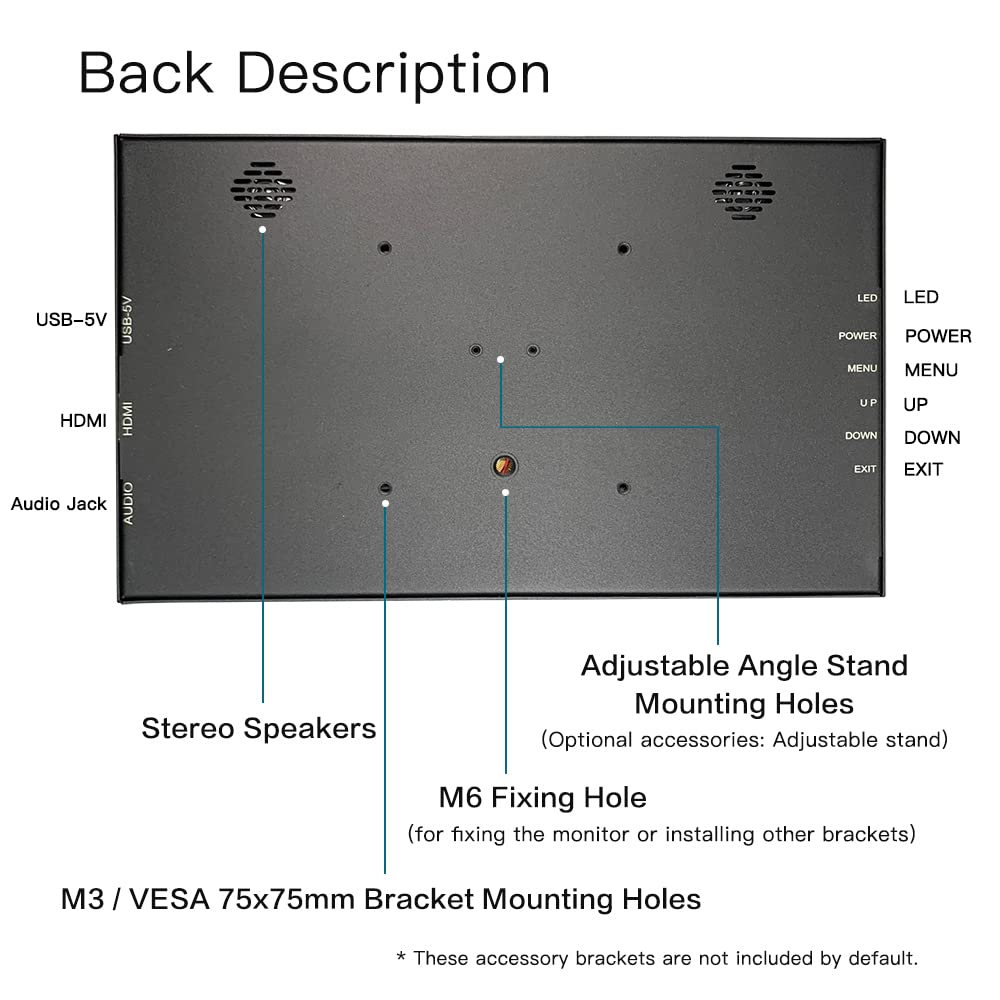

Interface：1×HDMI, 1×microUSB, 1×Audio Out
OSD Keyboard：Available for OSD control
Built-in Speaker：Yes
Case Material：Aluminum
What’s included?
1 x 10.1inch Portable Monitor
1 x HDMI Cable
1 x USB Cable
Connect to PC
The display supports Windows 7/8/10/11, mac OS. 1. Connecting the USB-5V to USB port of PC by micro USB cable.
2. Connecting the interface of display to HDMI port of PC by standard HDMI cable.

Connect to Raspberry Pi
1. Insert the TF card to Raspberry Pi.
2. Connecting USB-5V of the monitor to a USB port of Raspberry Pi.
3. Connecting HDMI of the monitor to HDMI port of Raspberry Pi.
4. Power on Raspberry Pi and the LCD will display.

Raspberry Pi doesn't support hot-plug and auto-recognized the resolution, you need to configure the resolution manually. There are specific operation methods in the user manual.

About touch function:
<1>. The "USB-5V" interface of the monitor must be directly connected to the host computer, please do not use an external power supply. ( * The power supply needs to be more than 5V/2A, otherwise the screen may flicker due to insufficient power supply.）
<2>. After completing the above operations, please restart the host (Raspberry pi / PC).
<3>. We recommend using the original cables.

EAN: 0789219083065

Package Dimensions: 12.1 x 8.3 x 2.3 inches
