waveshare 4 inch HDMI LCD IPS Display 800x480 Resolution Resistive Touch Screen Interface for Raspberry Pi 4 B/3 B/3 B+/2 B/B+/B Zero W

Brand: waveshare

Color: 4inch HDMI LCD Screen

Features:

• 800x480 high hardware resolution, 4 inch touch screen, IPS display, high quality and perfect displaying from very wide viewing angle.Backlight can be turned off to lower power consumption.
• Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)
• Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie),Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
• HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)
• Online development resources and Technical Support is provided, please contact us FIRST if you have any problem .

model number: 4inch HDMI LCD

Part Number: 4inch HDMI LCD

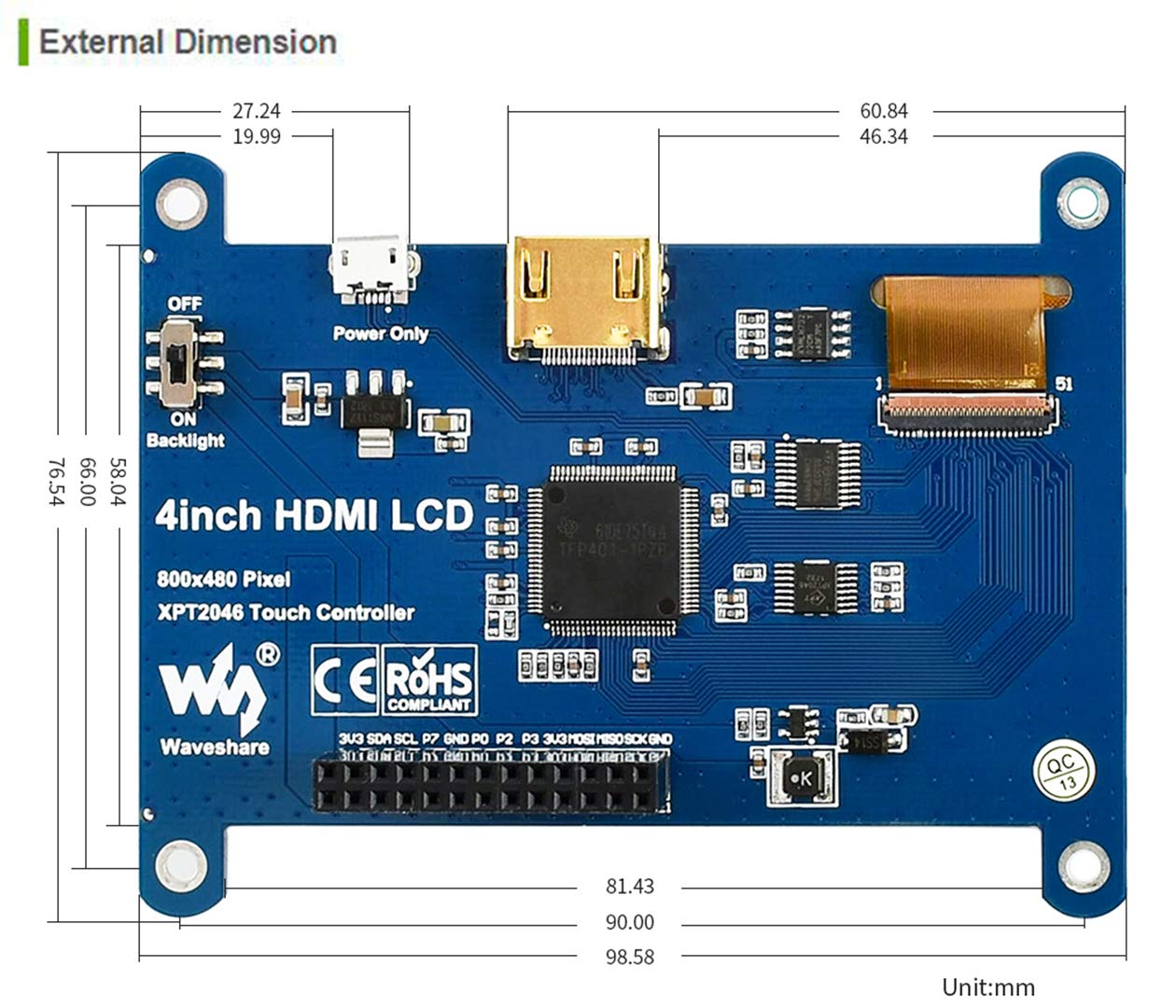

Details: 800x480, 4inch Resistive Touch Screen LCD IPS Display, HDMI interface, IPS Screen, Designed for Raspberry Pi

Features

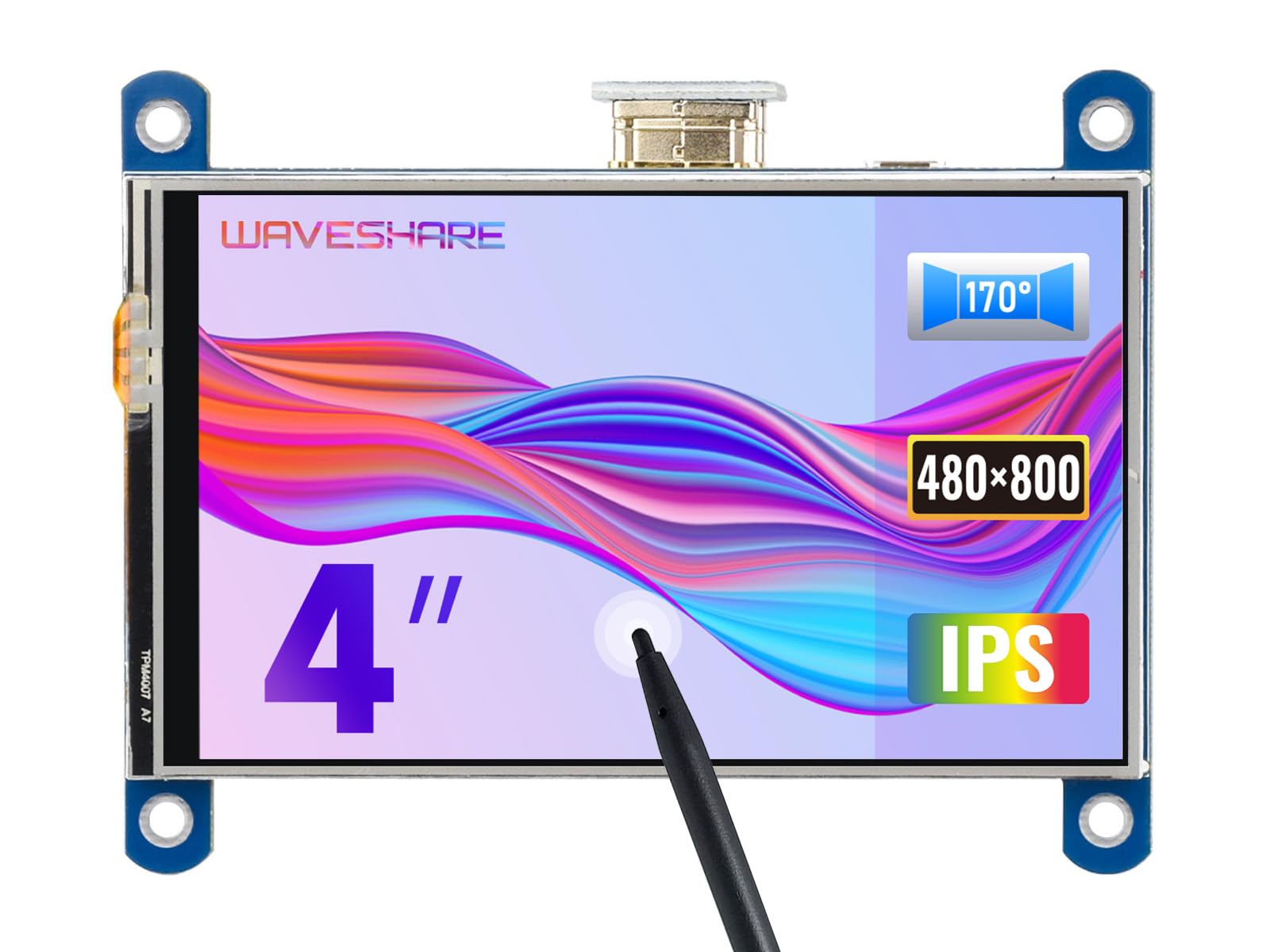

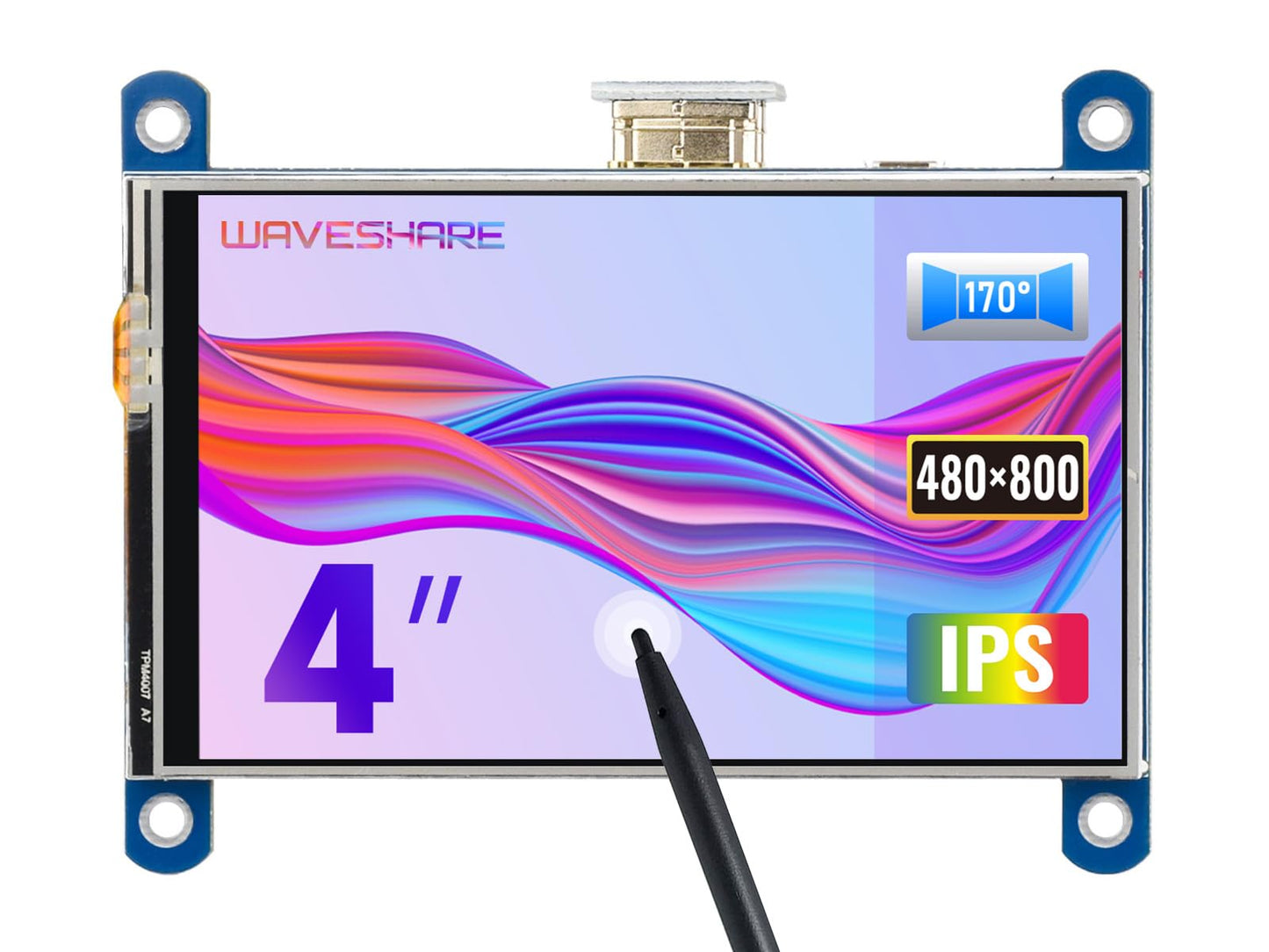

4 inch 800x480 high hardware resolution Touch Screen , a good solution for those seeking for a small size with bigger resolution display
Resistive touch control, with a touch pen , easy to use
IPS technology, high quality and perfect displaying from very wide viewing angle

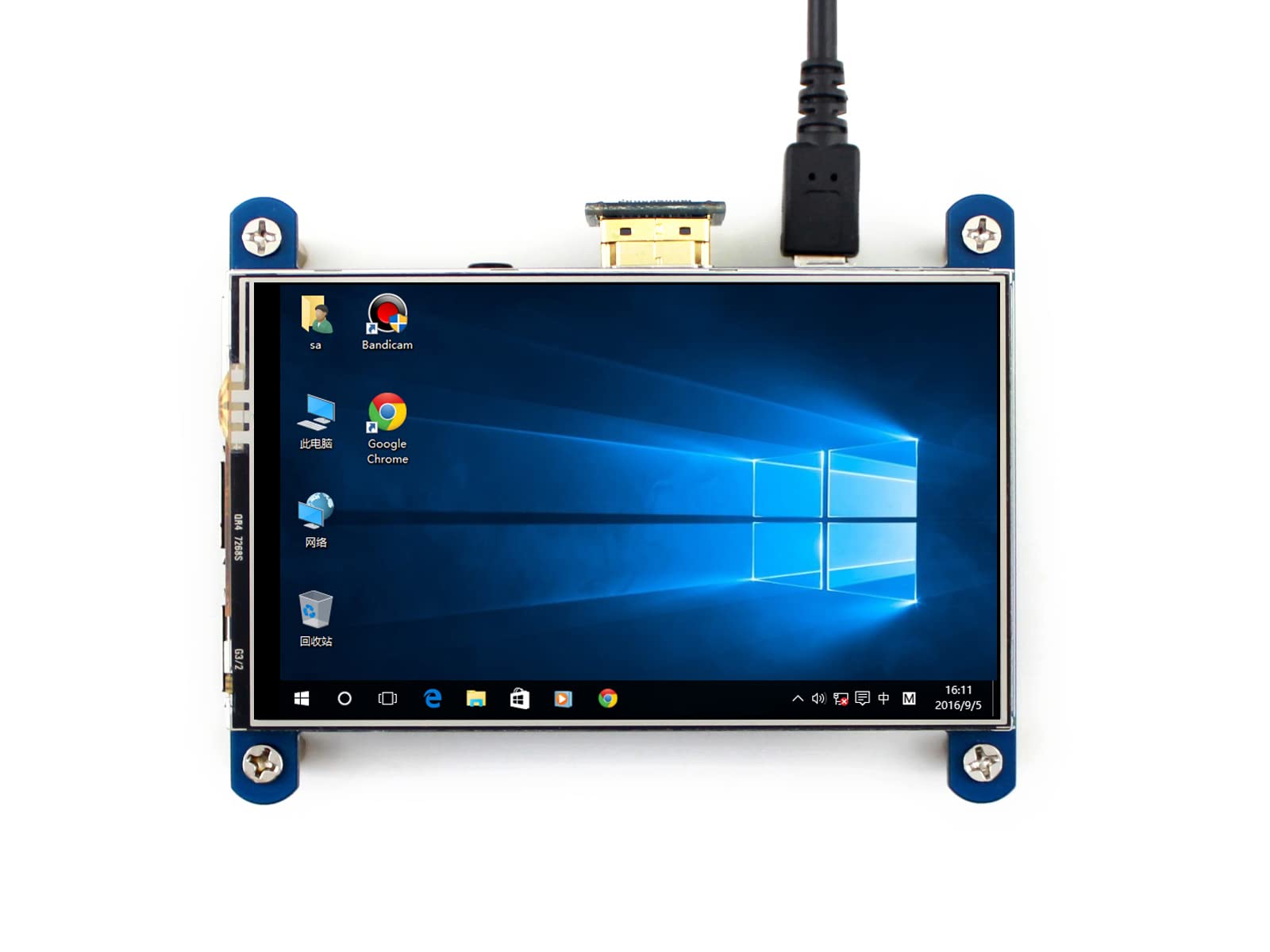

Not only can be used with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable), but also works as a computer HDMI monitor.When working as a computer monitor ,touch panel is unavailable and HDMI cable is required.
Drivers provided to work with Raspbian/Ubuntu/Kali/Retropie
Backlight can be turned off to lower power consumption

Package Content
4inch HDMI LCD x 1 HDMI connector x 1 Touch pen x 1 RPi screws pack (4pcs) x 1 Quick start sheet x1

Note

The touch of the LCD can be driven in two ways:

Method 1: Install driver manually;

Method 2: Using ready-to-use Image

The images, drivers , user manual and software are provided , please contact us via Amazon message to get .

FAQ

1.It seems not to work as a computer monitor for a Windows PC, right?

This LCD is used for portrait display. You can set the orientation on Windows: desktop right click --> display settings --> orientation: portrait

2.How could I disable the rainbow screen?
Please add the following command to /boot/config.txt
dusable_splash=1
Note
Online development resources are provided, please contact with us to get if needed.

EAN: 0614591448426

Package Dimensions: 5.4 x 3.8 x 1.6 inches
